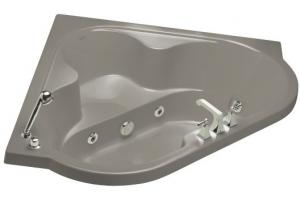

Kohler Cornerstone K-1433-HM-K4 Cashmere Whirlpool Bath Tub with Custom Pump Location

Kohler Cornerstone K-1433-HM-K4 Cashmere Whirlpool Bath Tub with Custom Pump Location

Cornerstone™ whirlpool with custom pump location

The integral seat on the Cornerstone whirlpool forms a convenient seating area that provides multiple bathing options, and innovative whirlpool technology creates a sensory sanctuary where you can relax, rejuvenate and renew. A variable-speed pump with 18 settings and custom location powers six Flexjet whirlpool jets that provide an individually adjustable hydro-massage for those aching muscles, and an in-line, 1.5-kW heater keeps the water at your desired temperature. This KOHLER Experience whirlpool is constructed of durable, high-gloss acrylic, ensuring years of reliable use. This model allows pump extensions up to 8" beyond the rim.

60-1/2" x 60-1/2" x 24"
Convenient seating area provides multiple bathing options
KOHLER® Experience whirlpools create a sensory sanctuary where you can relax, rejuvenate and renew
Featuring a variable-speed pump with 18 settings and in-line, 1.5-kW heater
Six Flexjet™ whirlpool jets provide an individually adjustable hydro-massage for aching muscles
Drop-in installation
240V hard-wire electrical service required
Acrylic
Designed for two-person bathing
Optional remote control available
Less all trim

Features of the Kohler Cornerstone K-1433-HM-K4 Cashmere Whirlpool Bath Tub with Custom Pump Location:

Acrylic
1.5 hp variable-speed pump with 1.5 kW heater and back-lit user keypad
6 FlexjetsTM
For corner installation
Custom pump locations
Less all trim
Optional K-1435 front apron
60-1/2" (153.7 cm) x 60-1/2" (153.7 cm) x 24" (61 cm)

Also Known As:
K.1433.HM.K4
K 1433 HM K4
K_1433_HM_K4
K1433HMK4

The acrylic bath whirlpool shall be 60-1/2" (153.7 cm) in length, 60-1/2" (153.7 cm) in width, and 24" (61 cm) in height. The bath whirlpool shall have 6 Flexjets, a 1.5 hp variable-speed pump, a 1.5 kW heater, and back-lit user keypad. The bath whirlpool shall be less all trim. The bath shall be for corner installation and include custom pump locations. The bath whirlpool shall be Kohler Model K-1433.

Required Accessories

K-9696 Jet trim kit

K-7167 Clearflo pop-up drain

Recommended Accessories

K-1181 Vinyl tiling-in head (use when wall material contracts any top surface of bath)

K-1435 Apron (removable)

K-1491 Pillow

K-1601 Footstop

K-1703 Remote control

Codes/Standards Applicable
Specified model meets or exceeds the following:

ANSI Z124.1.2

ASME A112.19.7M

IAPMO/UPC

Underwriters Laboratories (UL)

Important note for the Kohler Cornerstone K-1433-HM-K4 Cashmere Whirlpool Bath Tub with Custom Pump Location

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720689229 UPC/EAN:

Note: Specifications and pricing of the Kohler Cornerstone K-1433-HM-K4 Cashmere Whirlpool Bath Tub with Custom Pump Location subject to change without notice. Illustrations and descriptions of the Kohler K-1433-HM-K4 do not claim to be complete or exhaustive.
